V-Sight Visible R65 Worker 40

Why install two lights when you can install one? Visible Worker combines economy and space efficiency through its dual-function design.

Smooth work light with integrated warning light.

The Worker series has an extremely even light pattern without hot-spots, Visible Worker takes work lighting to a new level with built-in warning light.

Visible Worker is certified according to EU standards and complies with ECE-R65, ECE-R112, ECE-R10, CISPR 25-Class 3, CE and RoHs. Approved Warning Light & Work Light

Specifications
E-marked: CISPR25 Class 3, ECE R10, ECE-R112, ECE-R65
Emc class: ECE R10 - does not interfere with radio
Operating voltage: 9-36 DC
Diodes: 2X20W LED (work light) 4X3W LED (flash light)
Diode power: 40/12W
Power consumption (12V/24V): 2.7A/1.3A

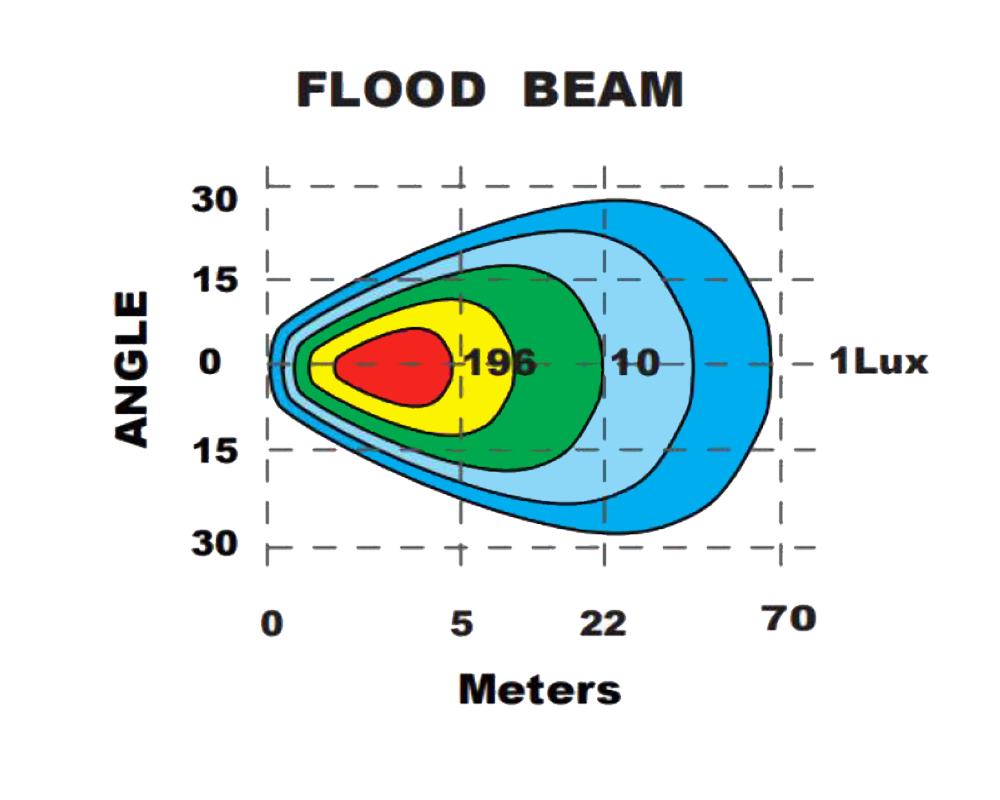

Light pattern: FLOOD 55º
Range: 130m (1lux@45m) (flash patterns visible at 1000m)
Kelvin: 6000K
Candela: 4950VD
Lumen: Raw 3600lm, Real 2900lm
Connection: DT4 connector
Construction: Aluminum housing, Polycarbonate (PC) lens
Other Certifications: CE & RoHs

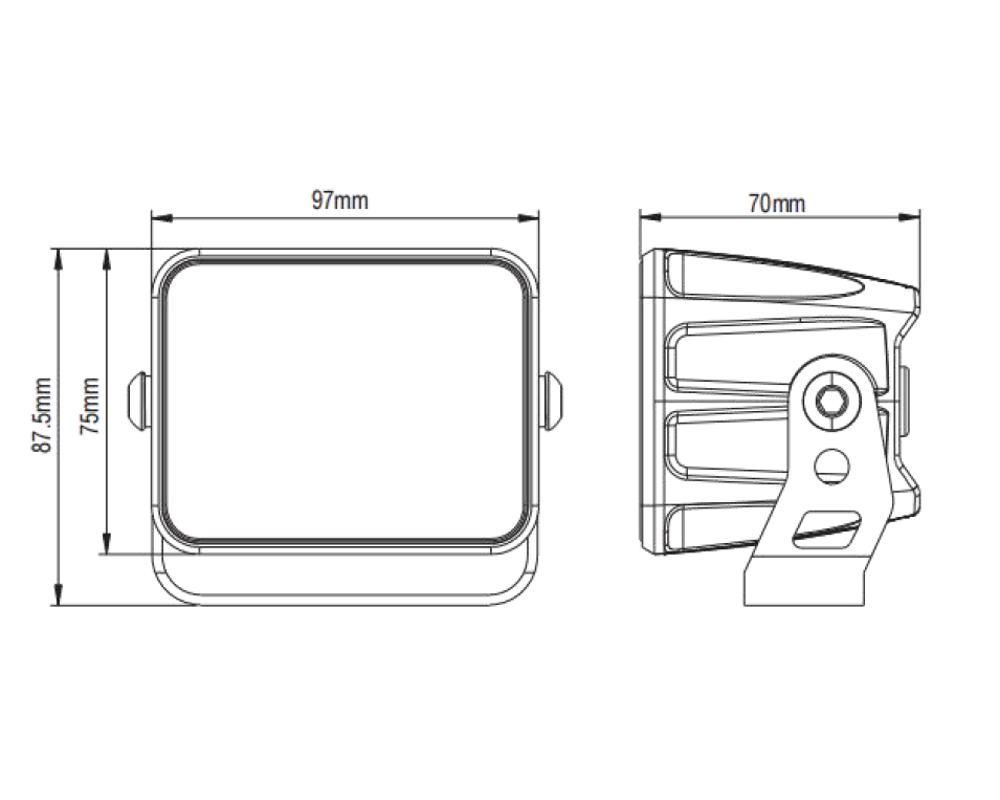

Dimensions: 97x75x70mm excl. bracket (bhd)
Lifetime: >50000 hours
Working temperature: -40ºC to 60ºC
Tightness class: IP68/69K
Electronic thermal management: YES
Under/over voltage protection: YES
Reverse polarity protection: YES
Mounting: Foot
Mounting: Upright, Hanging, Sideways
Foldable into body: NO
Warranty: 3 years
